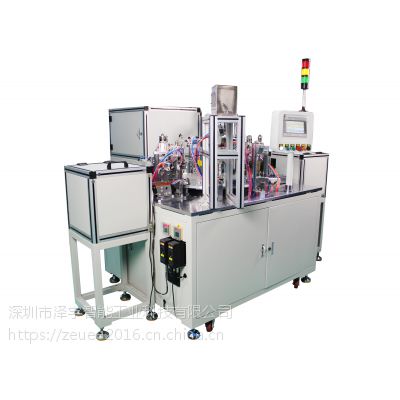

手机自动贴膜机

Sticking film machine

一、设备描述 Equipment Description

●   采用PLC可编程控制系统，方便功能调整和技术升级

●   采用7寸真彩触摸屏控制，人机界面美观、操作简便

●   外形采用透明亚克力覆盖整机，方便操作维护

●   标准元器件均采用国外高端品牌

●   全封闭式设计***操作安全防护等级

●   故障自诊断功能，故障显示一目了然

●   带开门保护功能，有效保护操作员安全

●   采用精密传感器检测物料到位

●   采用百级以上精密吸尘过滤器更有效除掉残留尘粒

●   采用高精密DD马达带动治具

●   采用高精密真空吸附并快速、准确地把膜贴合在屏幕上

●   主要采用伺服机械手移载方式将屏幕吸附到治具上

●   Use PLC programmable control system, convenient for function adjusting and technique updating.

●   Use 7 inches true color touch screen control system, beautiful human-computer interface and easy operation.

●   The whole machine is covered with crystal acrylic, convenient for operating and maintaining.

●   Use international high-end standard components to ensure stability and reliability of the machine.

●   Totally enclosed design guarantee safe operation and protection class.

●   Breakdown self-diagnosis function, crystal clear breakdown display.

●   Safety grating region protecting function, effectively guarantee operator&＃39;s safety.

●   Use precise sensor to detect whether the product is in position.

●   Eliminate the residual grit more effectively through a hundred grades precise vacuum filter.

●   Drive fixtures by highly precise DD motor.

●   Absorb the screens into fixtures through servo manipulator shifting way.

二、细节Details

人工先将前段半成品放至治具内，治具采用精密CNC加工成型，贴膜精度达到正负0.05mm

Manually put the front part semi-finished products into the fixture, the fixture is processed to model by precise CNC, accuracy of film-sticking is ±0.05mm.

三、散件成品Finished spare parts
